Model | MJ6226 | MJ6233 |
Sawing length | 2600mm | 3300mm |
Main saw spindle speed | 5600rpm | 5600rpm |
Scoring saw spndle | 8500rpm | 8500rpm |
Sawing thickness | 70mm | 70mm |
Dia. Of main saw blade | 355mm | 355mm |
Axis dia. of main saw blade | 30mm | 30mm |
Dia. of grooving saw blade | 160mm | 160mm |
Axis Dia. of scoring saw blade | 25.4mm | 25.4mm |
Head saw motor | 9kw | 11 kw |
Grooving saw motor | 1.5kw | 1.5kw |
Speed variable by inverter | 0-45 m/min | 0-45 m/min |
Operation pressure | 5-7kg/cm | 5-7kg/cm |
Workbench height | 950mm | 950mm |
Net weight | 3000kg | 3200kg |
Dimensions (L*W*H) | 5200*3550*1750mm | 5600*3550*1750mm |

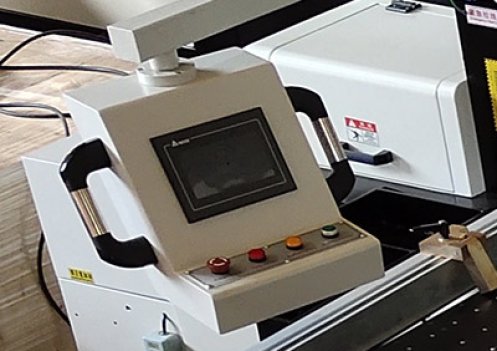

Control panel: Touch screen control panel. Taiwan Delta brand control system.

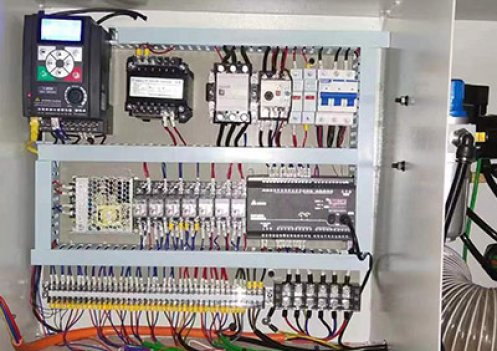

Electric box Simens & Omron brand Electric parts Delta brand PLC, CHNT switch.

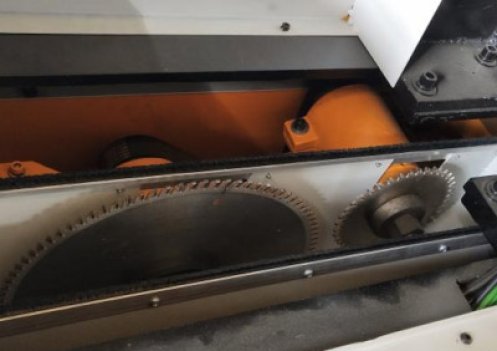

Taiwan brand guide rail, durable, high precision, and the error within 0.01mm per meter Taiwan DELTA Brand servo motor, higher precision, more sensitive. Main saw blade and scoring saw blade are controlled by independently.
