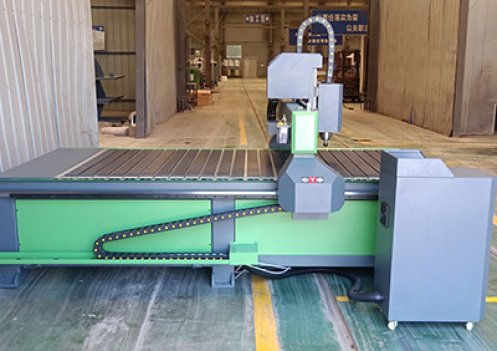

ZD1325 CNC ROUTER | |
Model | ZD1325 |
Working range | 1250x2500mm |
Working height | 200mm |
Working speed | 0-18m/min |
Processing speed | 0-10m/min. |
Drive method | Changzhou Anhao 450B stepper motor |
driver | Shenzhen Leisai 860 stepper driver |
Spindle power | Changzhou Farright 3.2kw Water cooled (3.5kw Air-Cooled optional) variable frequency spindle motor *2 |
XY guide rail and transmission | 20 square rail, XY high precision rack drive |
Z-axis guide rail and transmission | 20 square rail, original TBI ball screw |
Operating Voltage | 220V/50hz（380V/50Hz） |
Supported formats | *nc，G code,*uoo,*mmg,*plt |
Control system | NCstudio |
oil lubrication | Manual oil filling |
Control cabinet | Independent control cabinet |
Performance characteristics | ◎ Adopt gantry type structure, the guide rail support surface is stable, and the rack transmission mode, the transmission is stable, to ensure that the long-term high-speed operation does not deform and does not shake. ◎ Using linear guide, Y-axis is driven by double motors, with large load-bearing redundancy and long service life. Using double rack transmission, the operation is simpler The design is more user-friendly. ◎ Compatible with a variety of software, compatible with various design and production software such as type3/Artcam/Castmate/Jingdiao/Wentai |
Scope of application | ◎ Furniture industry: cabinet doors, wooden doors, solid wood, panel, doors and windows, tables and chairs. ◎ Decoration industry: screen, wave board, large wall hanging, advertising board, logo production. ◎ Advertising industry: It can be engraved or cut on acrylic, chevron board, fron board, two-color board and other materials. |

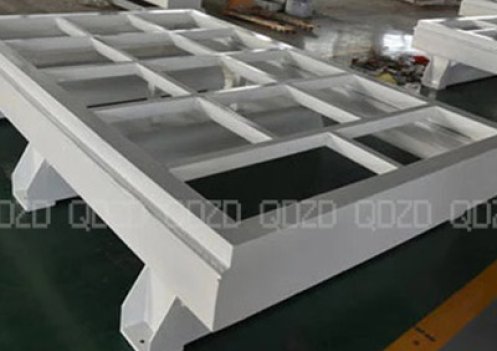

Base frame, solid, heavy duty construction. The base frame is a 5 axis XNX processed steel frame that is welded, stress-relieved and precision machined.

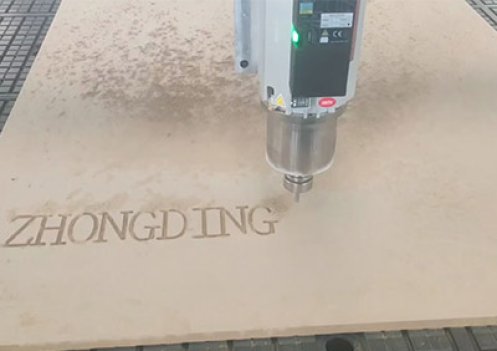

Well-known brand water-cooled spindle, high speed, high torque, durable bearing and long service life. (Optional air-cooled spindle or other brand spindles like HSD)

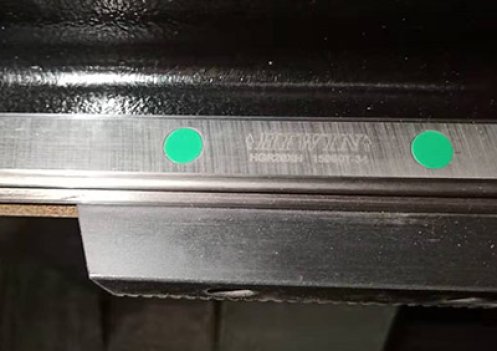

Square liner rail, Taiwan HIWIN rack guide rail, high precision, fast speed, high-precision grinding rack, double-row sliding block. Work stability and durability.
Heavy-duty thickened steel body. Selected thickened steel, tempered, sandblasted, and quenched to prevent deformation and cracking, strengthen and thickened body make.

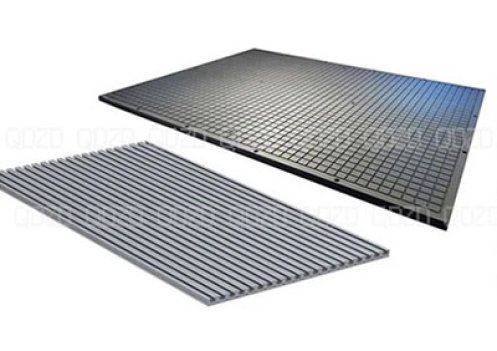

T-shaped table and vacuum table are optional. The vacuum table has strong adsorption force and can strongly adsorb materials of different sizes. High density, not easy to deform, high temperature resistance.

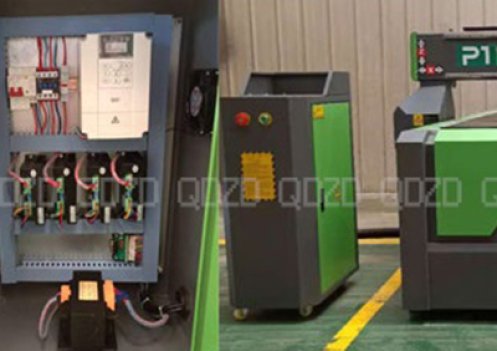

Independent control box. Standard stepper driver and motor optional servo driver and motor. Independent electrical box, save space. Support computer and DSP handle control.
