PROFESSA-Heavy duty professional | MASTRA-U Itimate heavy duty professional |
8tools change holder | 16tools change holder |
Tools ER30 middle duty | ToolsER40 Heavy duty |
X Stroke:4100mm | X Stroke:4100mm |
Y Stroke:2200mm | Y Stroke:2600mm |
Z Stroke:880mm | Z Stroke:880mm |
X speed:80m/min | X speed:80m/min |
Y speed:60m/min | Y speed:60m/min |
Z speed:60m/min | Z speed:60m/min |
A axis: continuous rotate | A axis: continuous rotate |
C axis:400 +_degree | C axis:400 +_degree |
Main spindle:3000-18000rpm | Main spindle:3000- 18000rpm |
Power for main spindle:14kw=9.6kW*2 | Power for main spindle:14kw=9.6kW*2 |
Working table size:1200*1200 2 pcs | Working table size:1200*1200 2 pcs |
Control system: OSAI from Italy universal match any UG or CAM software | |
Weight of machine:6.9T | Weight of machine:8T |
Overall size:5400*3500*3800mm | Overall size:5900*3650*4100mm |

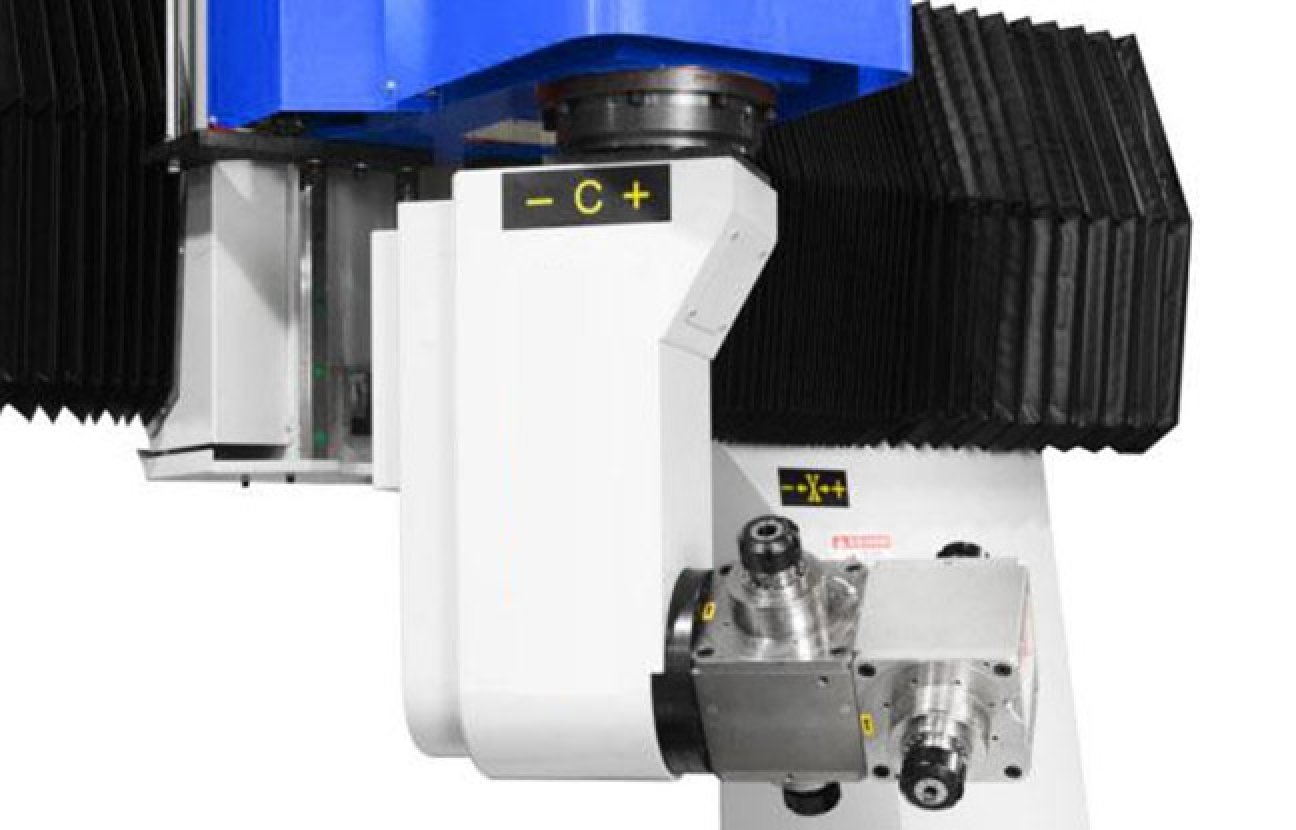

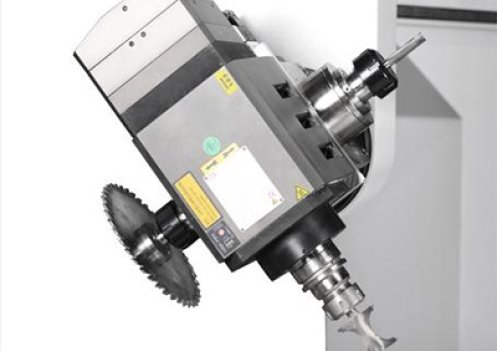

4tools change head combine the function of cutting, milling, drilling and carving, fast reaction for complex work.

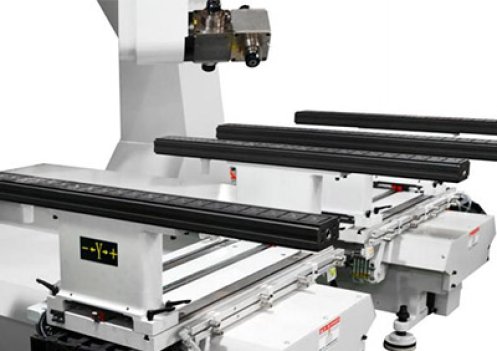

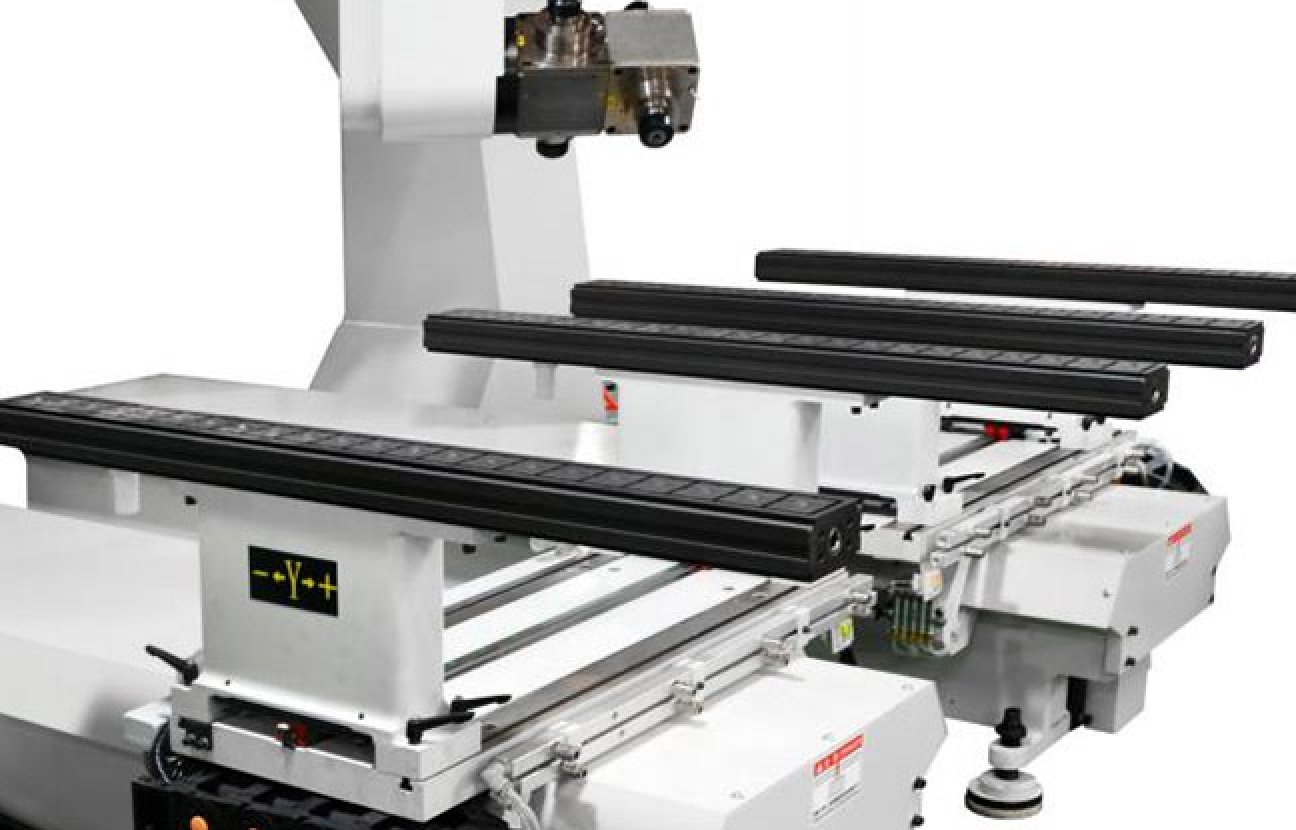

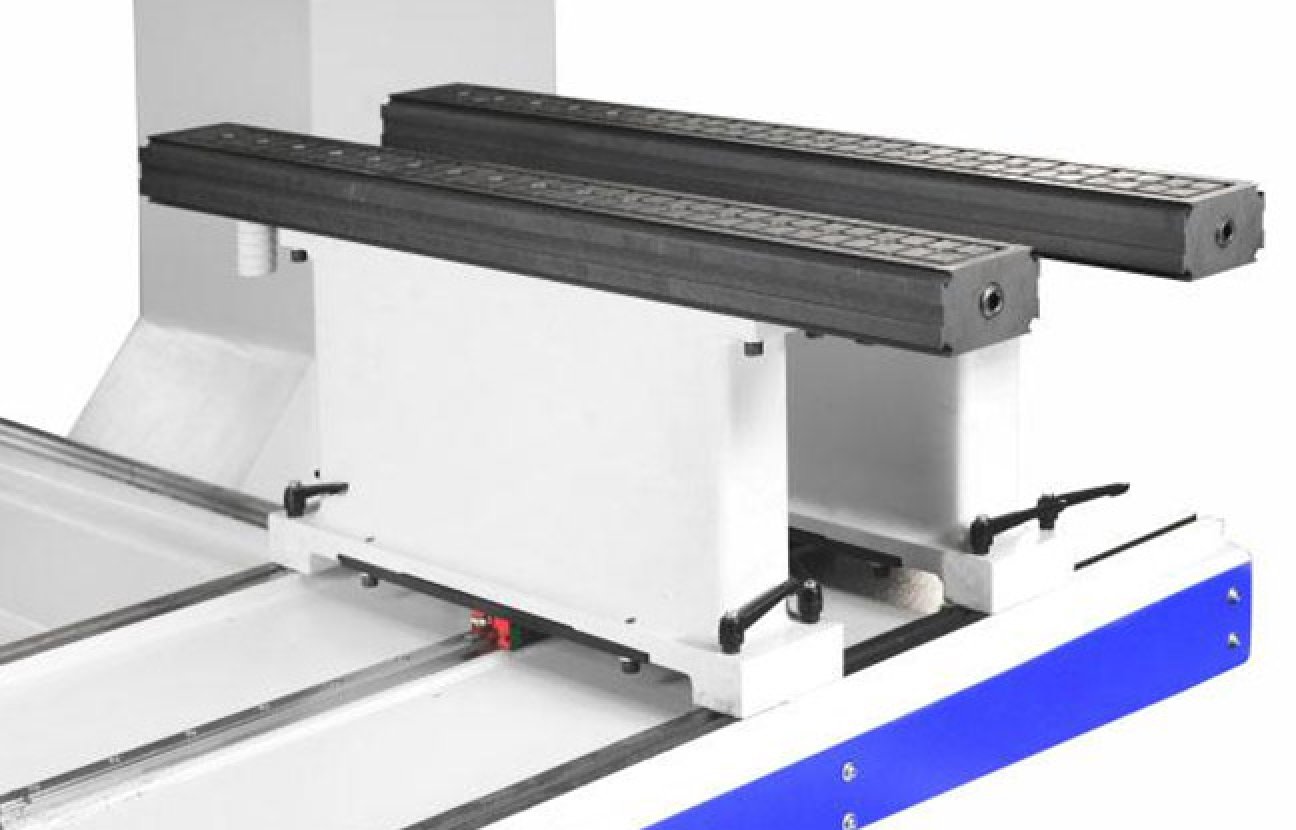

Free lock vacuum easy setting clamping for different material fixing for a easy and flexible production.
