Product Details
Drilling Machine For Furniture Technical Data:
Model No | MZ73216 |
Power | 9kw |
Max working depth | 60mm |
Vertical spindle heads | 140-3500mm |
Number of spindle | 21*6 |
Spindle speed | 2800rpm |
Motor power | 1.5kw*6 |
Overall dimensions | 4500*1200*1600mm |
Max processing thickness | 20-96mm |
Max processing width | 800mm |
Net weight | 1200kg |
Max drill diameter | max=35mm(for single drill) |
Drilling Machine For Furniture Details:

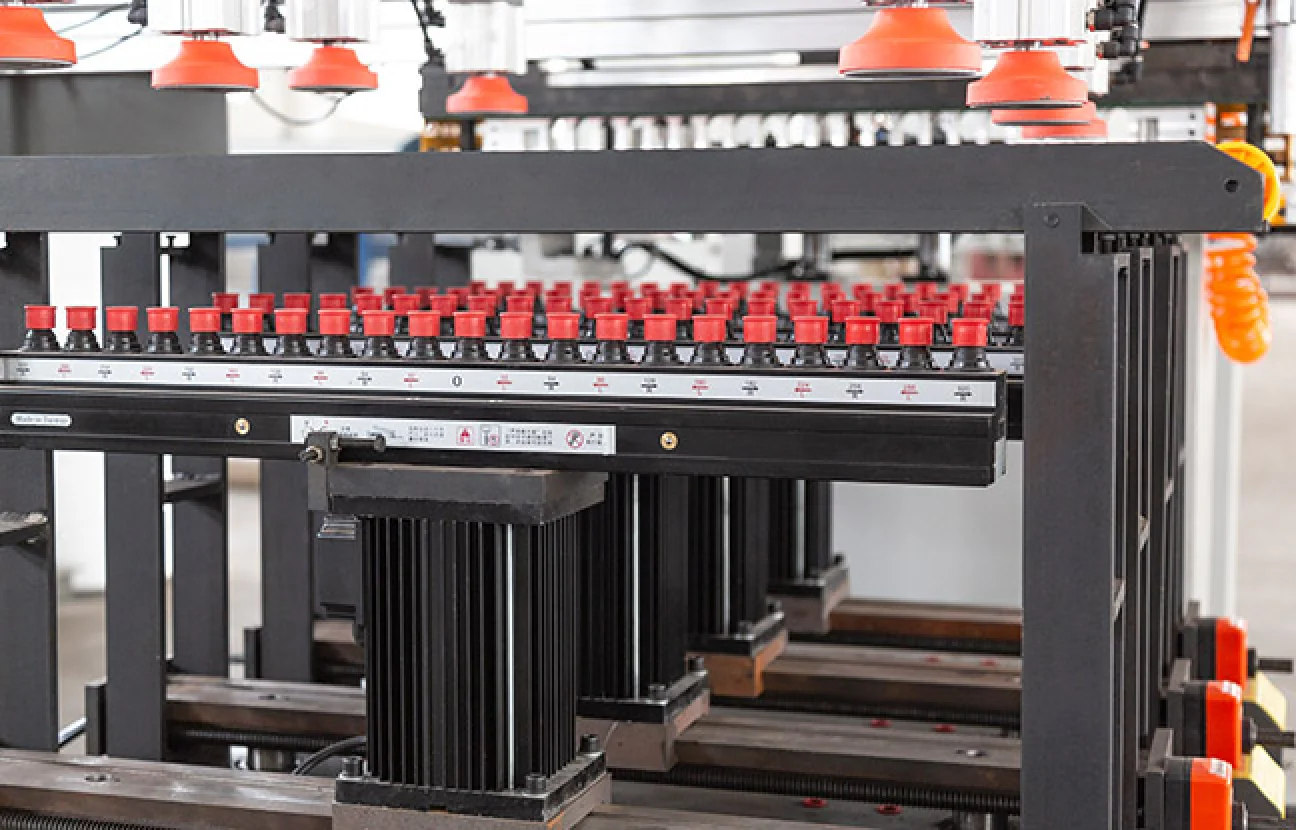

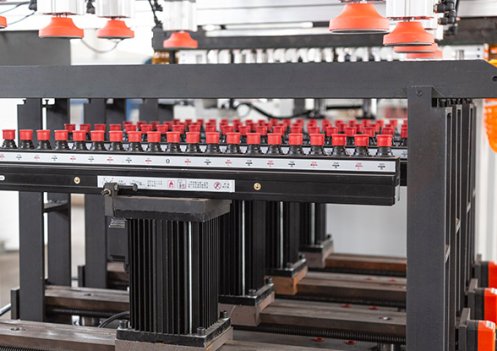

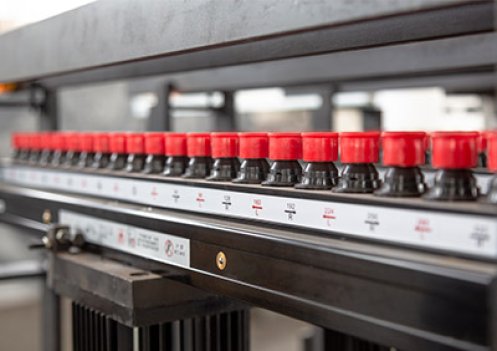

The drilling range is large, and all drilling head are quick and easy to use.
The drilling head has high precision, small amplitude, simple opening and long service life.
Drill assembly display, optimized design and reasonable structure, built in drag chain, easy to transport and use.
