● Planer sanding machine effectively corrects the unevenness on the surface of boards
● Planer sanding machine use eccentric shaft structure, high accuracy
● Planer sanding machine adopts welded steel, after quenching
● Long life service, stable and high precision
● Customizable, OEM & ODM
Model | ZDP-R-RP630 | ZDP-R-RP1000 | ZDP-R-RP1300 |
Max working width | 630mm | 1000mm | 1300mm |
Material thickness | 10-100mm(option 100-150mm) | 10-100mm(option 100-150mm) | 10-100mm(option 100-150mm) |
Min. Working length | 500mm(option400mm) | 500mm(option400mm) | 550mm(option400mm) |
Feeding speed | 5-25m/min | 5-25m/min | 5-25m/min |
Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
Total power | 29.5kw | 41kw | 81kw |
Working air pressure | 0.6mpa | 0.6mpa | 0.6mpa |
Volume of dust collecting | 6500m³/h | 15000m³/h | 15000m³/h |
Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
Overall dimension(L*W*H) | 1450*2450*2050mm | 1750*2450*2050mm | 2150*3000*2050mm |
Weight | 3000kg | 3600kg | 4500kg |

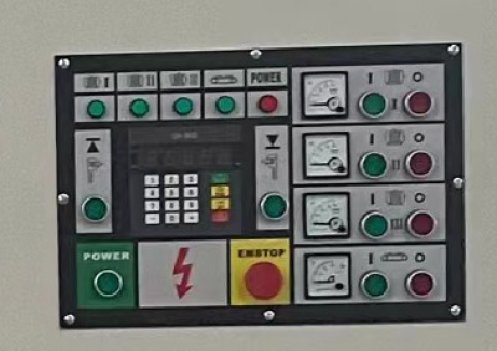

Control panel: The digital readout is used to set the conveyor table height, and 2 sanding rollers switch, and up and down button for manual adjusting, conveyor table switch.

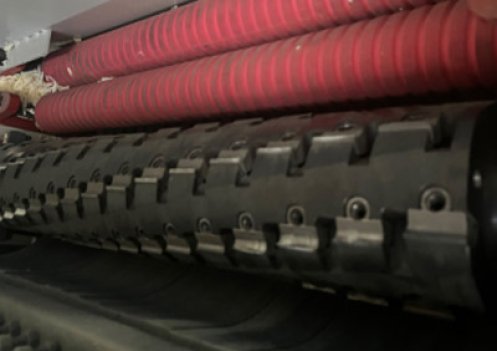

Planer unit: Flat the unevenness of the wooden board.

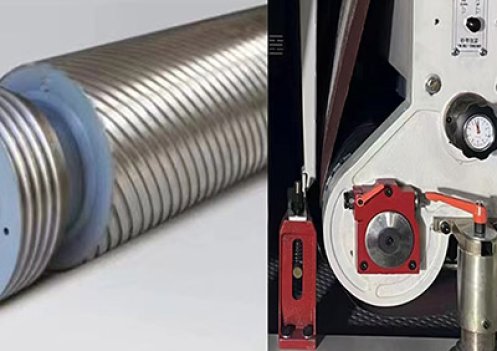

Adopting an integrated structure of roller body and pulley, it operates smoothly and has high accuracy
