● 6side drilling machine is easy to operate
● Continuous scanning and automatic loading of machining graphics files
● History data memory function
● After the equipment is shut down and restarted, there is no need to return to the origin
● Long life service, stable and high precision
● Customizable, OEM &ODM
Main spindle | 2*3.5kw CC |
Spindle speed | 18000rpm |
Collect | ER25 |
Drive method | Servo-drive |
Drive motor | ESTUN absolute value servo |
Drive | ESTUN absolute value driver |
Frequency converter brand | EDT |
Frequency converter power | 3.7kw adjustable frequency converter |
Control system | Higerman system |
Reducer | Japan Shimpo |
Rail | Taiwan Square Rail |
Rack | German high-precision helical gear |
Positioning | Automatic positioning system |
Side leaning | Automatic |
Wire | High flexible cable |
Machine body | Heavy duty bed, annealed treatment |
Working table | Air floating tabletop, 0.75kw high pressure blower |
Dust collector | Up Φ200mm, down Φ125mm |

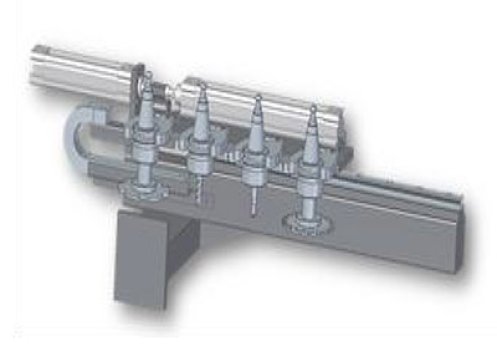

Four position linear tool magazine (Optional) Multiple cutting bits can be installed for various invisible parts processing and multi slot machining

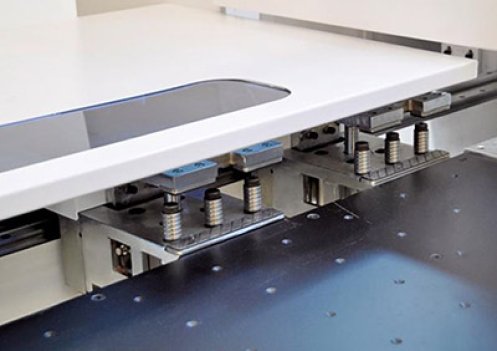

Double grip, precise positioning

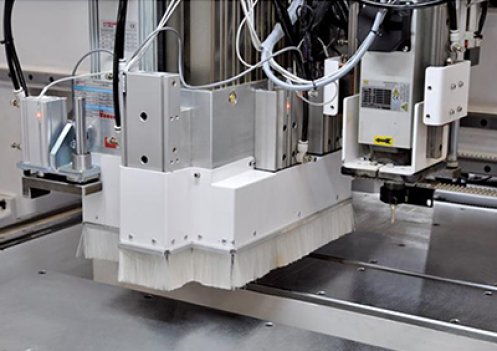

Six surface processing, one-shot complete
Continuous scanning: Supports barcode/QR code Scan and automatically load machining graphics files And automatically retrieve NC program processing
Independently adjusting tool processing speed: Tailored processing speed for each drill bit through processing data analysis, making production and processing more flexible

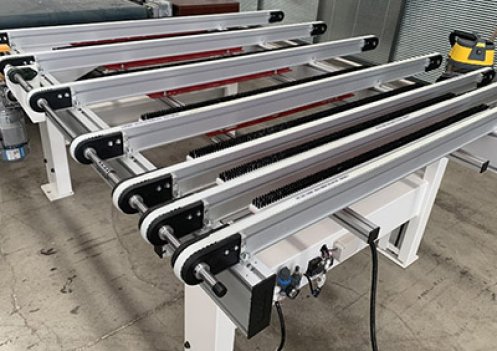

Flexible discharge (optional front/back/side discharge): Combined with automatic loading and unloading platform, multiple cutting options for convenient automation connection
