Model | ZD1000-6RS | ZD1300-6RS |
Max. working width | 1000mm | 1300mm |
Min working length | 350mm (200mm is customizable) | 350mm (200mm is customizable) |
Working thickness | 3-140mm | 3-140mm |
Feeding speed | 5-30m/min | 5-30m/min |
Size | 3600mm×2000mm×2200mm | 3600mm×2000mm×2200mm |
Weight | 3500kg | 3800kg |
Power | 12.04kw | 12.2kw |
Machine size | 3300×1600×2200mm | 3500×2000×2200mm |

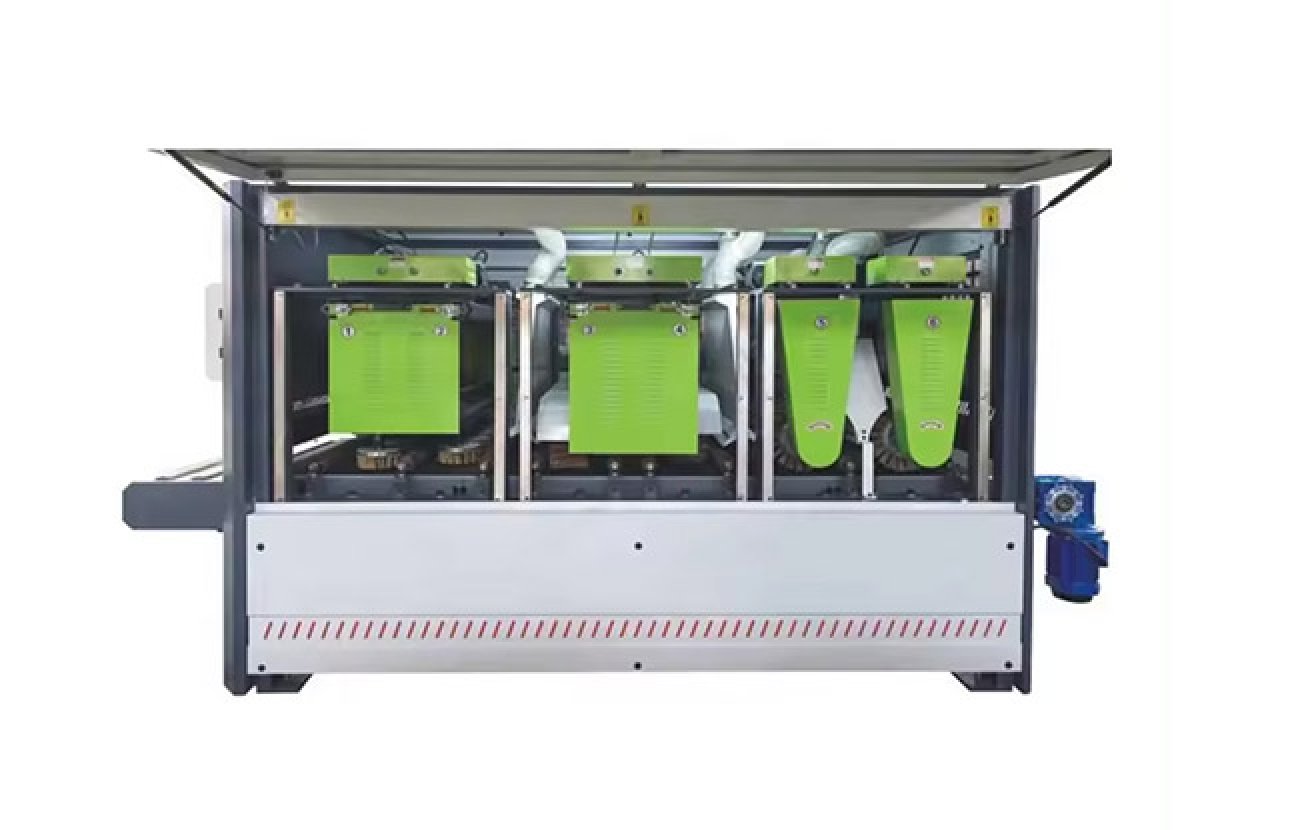

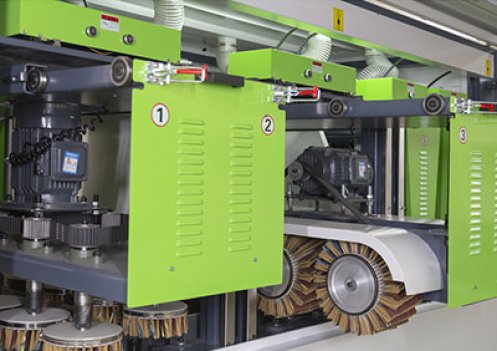

All sanding unit can be pulled out of the machine for roller replacement, and all sanding roller adopt quick-changing interface, changes quickly and easily. All sanding units are equipped with electric fine-tuning lifts and independent swings.

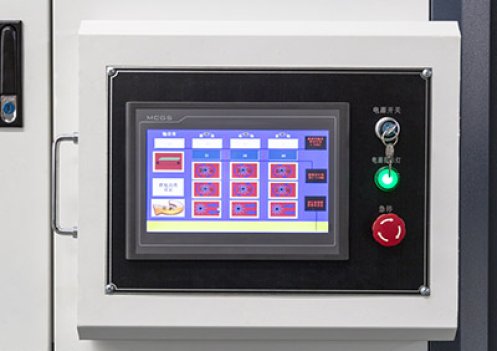

PLC Touch screen interface control system to adjust the sand-rollers’ speed and lifting of the workbench. Intelligent remember the data of when polishing plates of different specifications and one touch to change polishing or sanding modes.

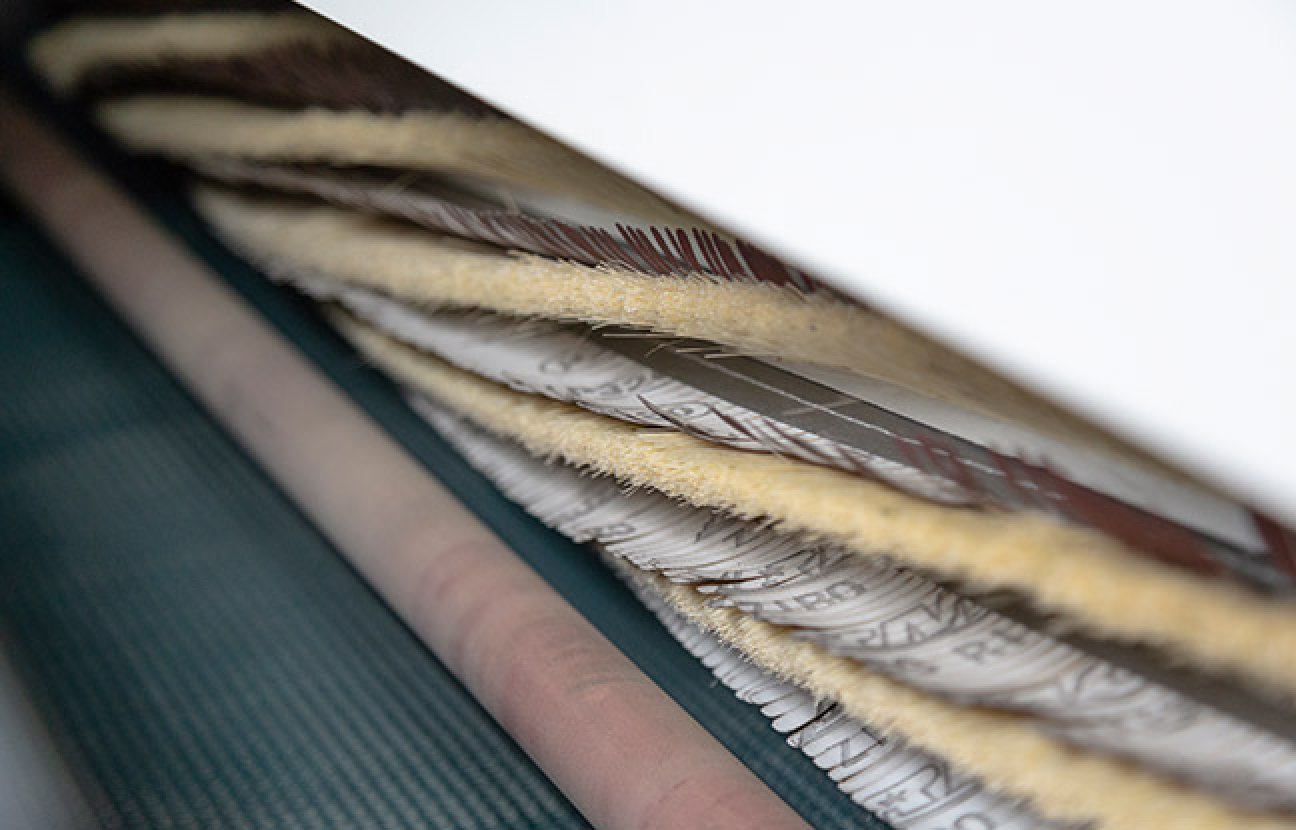

There is a double-faced grinding and polishing modes, Double-sided emery paper imported from Germany (coarse sand on one side and fine sand on the other) , free to transform between the raw material sanding and primer polishing by one-touch .

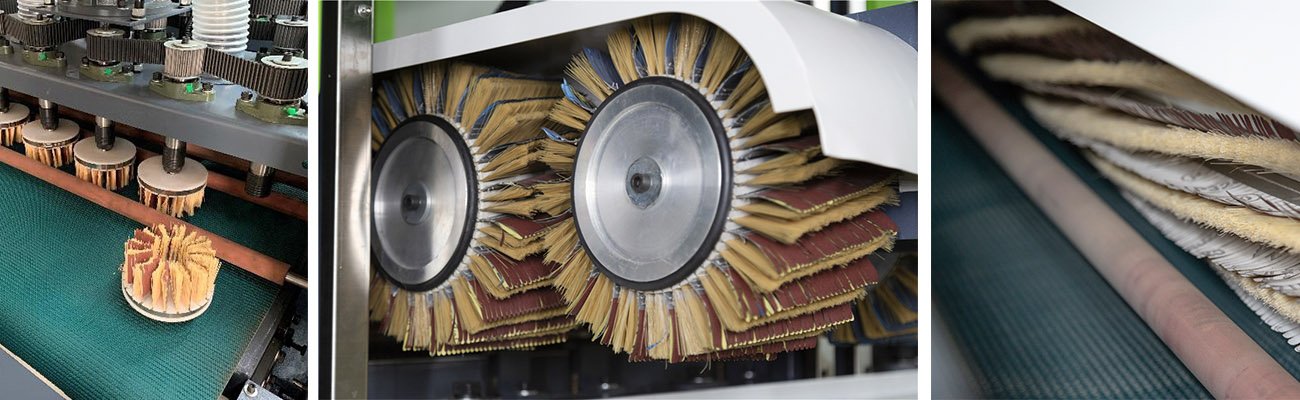

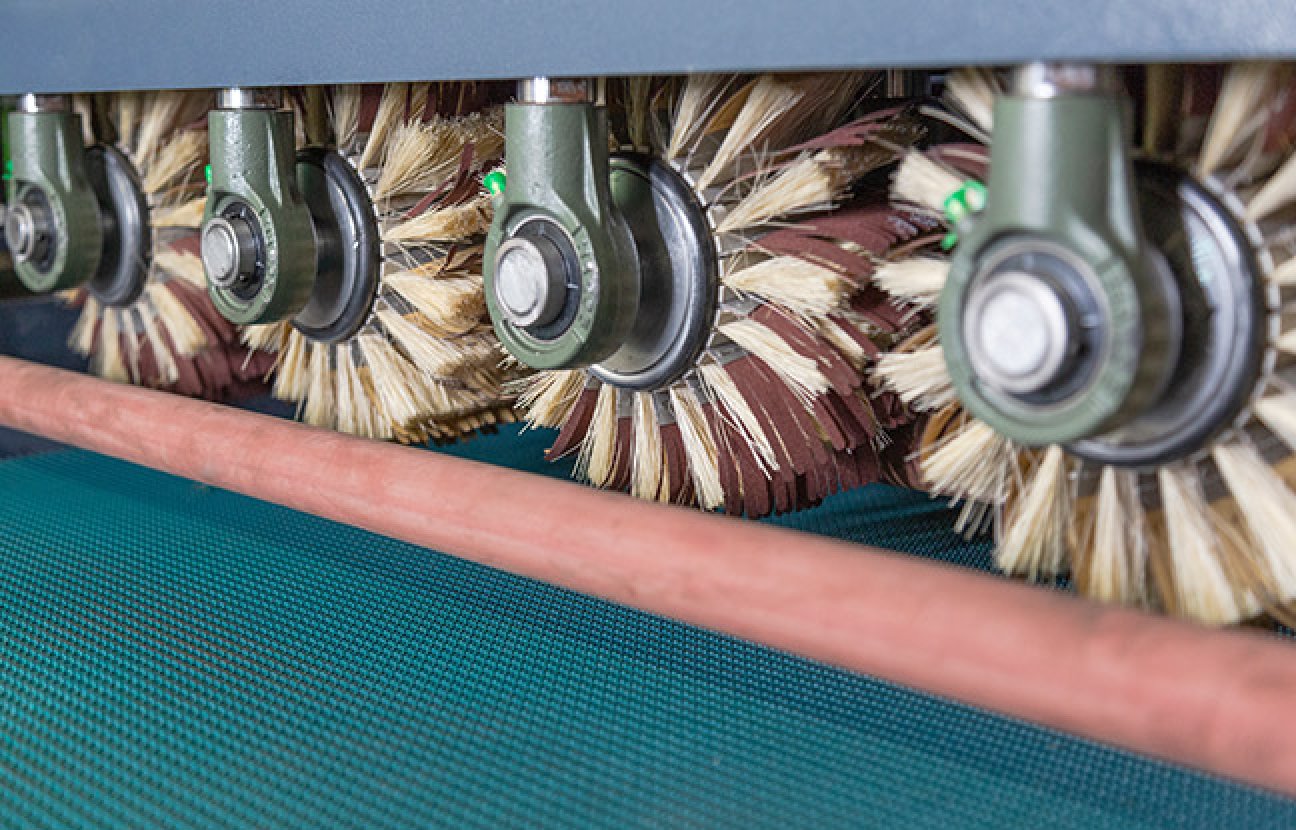

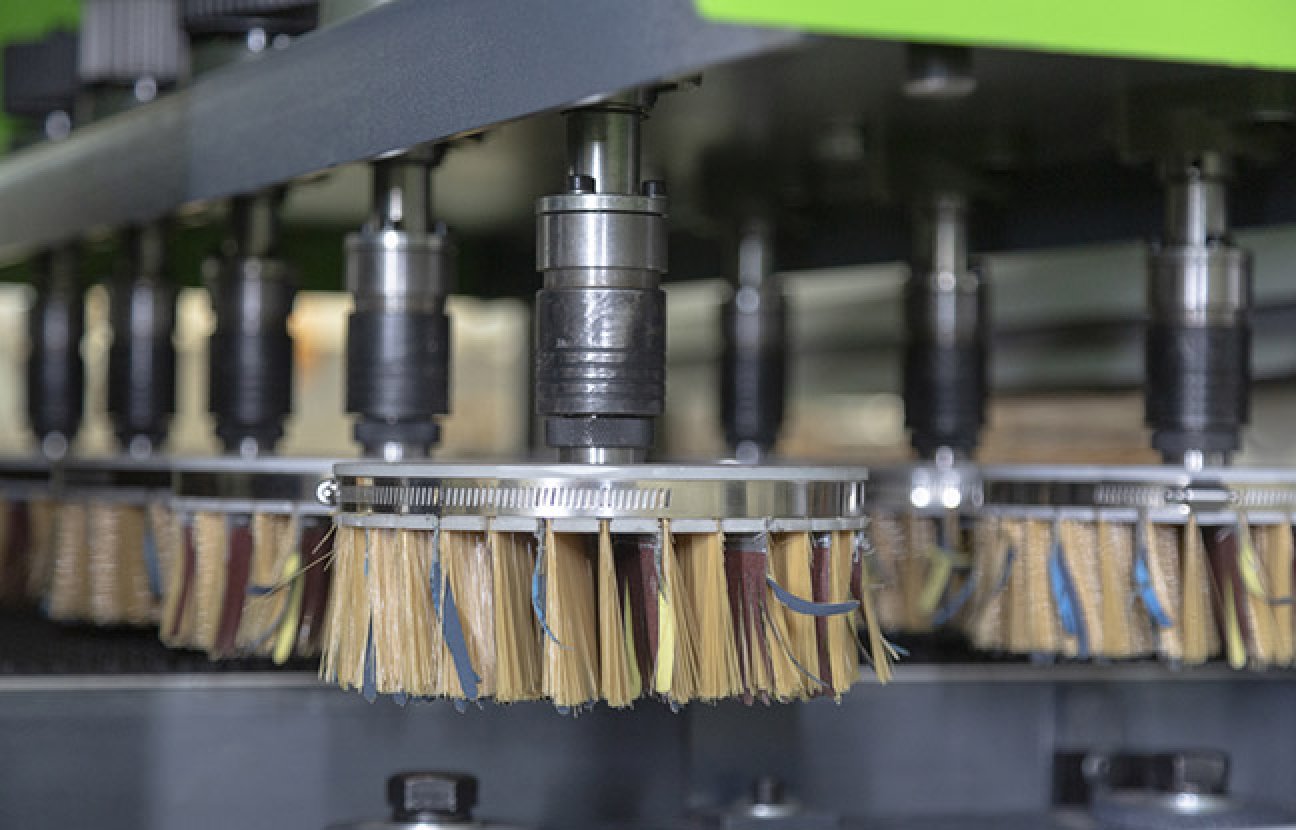

(4+5 pcs disc brushes) + (4+5 pcs short cylindrical brushes) + (2 pcs long cylindrical brushes)
