Product Details
Woodworking Edge Bander ZD300 Technical Data:
Banding tape thickness | 0.4-3 mm |
Banding tape width | 10-60 mm |
Work piece thickness | 10-60 mm |
Work piece length | >=100 mm |
Heating power | 0.75 KW |
Feeding motor power | 0.75 KW |
Glue spreading power | 0.37 KW |
Fine trimming power | 0.75 KW x 2 |
Polishing motor power | 0.18 KW x 2 |
Feeding speed | 13 m/min |
Air pressure | 0.7 Mpa |

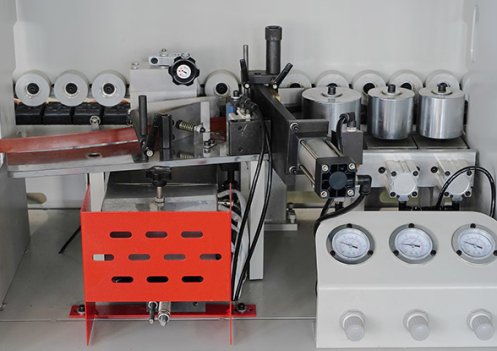

Woodworking Edge Bander ZD300 Details:

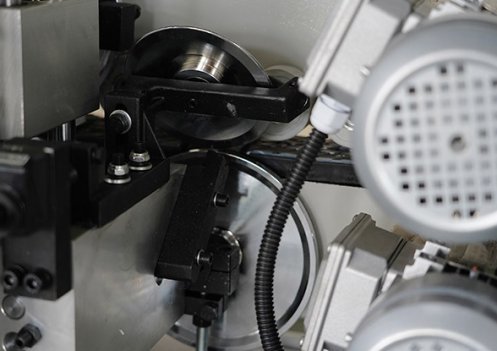

Upgraded scrapping mechanism with larger drive and large copy wheel to remove the wavy marks caused by the non-linear motion cutting process of trimming.

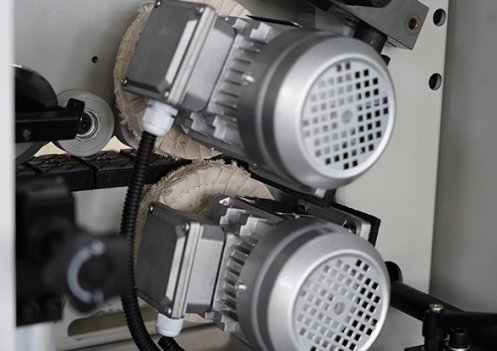

The polishing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.
The glue pot is made of imported special ball bearing, high hardness and super wear-resistant material rubber box.
