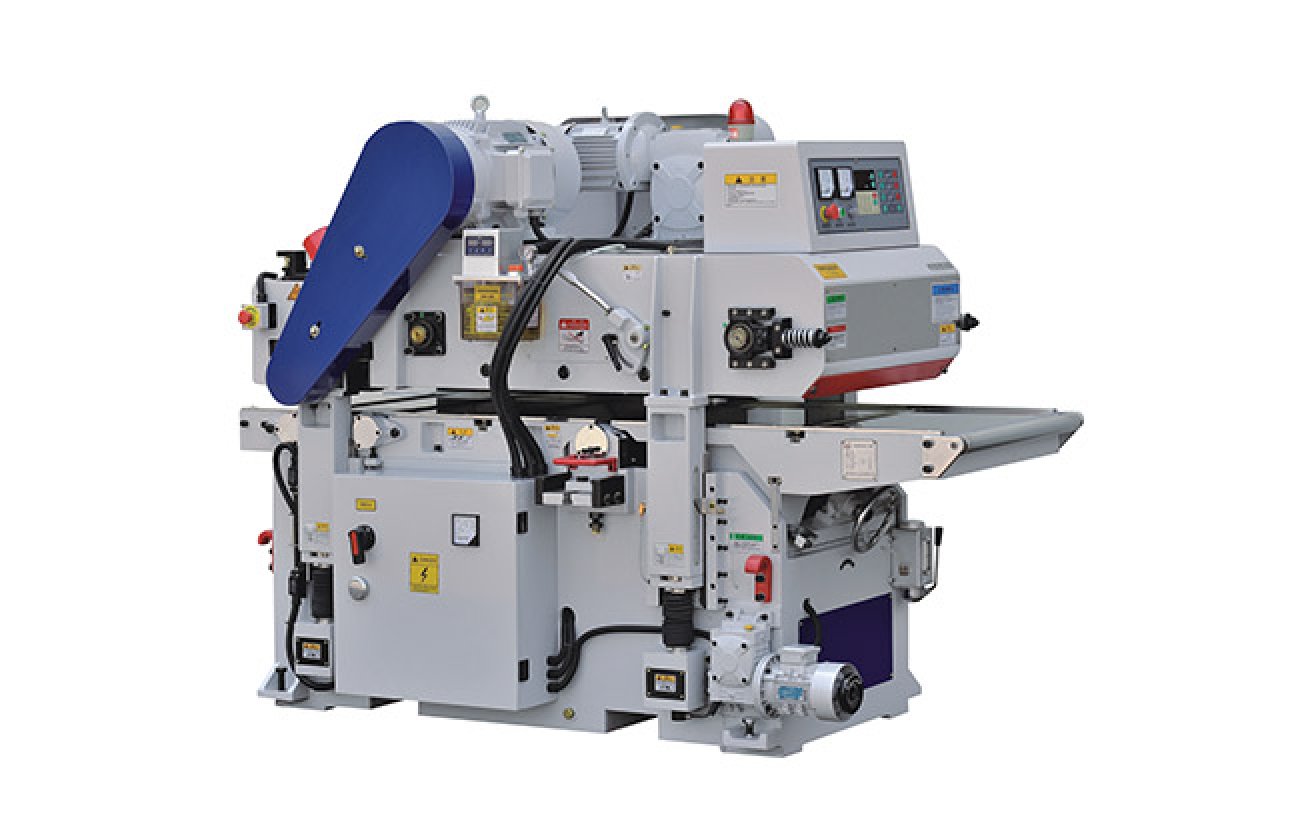

Model | MB204HL | MB206HL |
Max processing width | 410mm | 610MM |
Max. process thickness | 200mm | 200mm |
Min. process length | 260mm | 260mm |
Max planning depth(Top spindle) | 8mm | 8mm |
Max planning depth(Bottom spindle) | 5mm | 5mm |
Feeding speed | 4-16m/min | 4-16m/min |
Spindle Speed | 5000r/min | 5000r/min |
Upper&Bottom Spindle power | 7.5KW/7.5KW | 11/7.5KW |
Feeding motor power | 2.2KW | 3KW |
Lifting motor power | 0.37KW | 0.37KW |
Machine size | 2250*900*1700mm | 2250*1000*1700mm |
Weight | 2450KG | 2800KG |

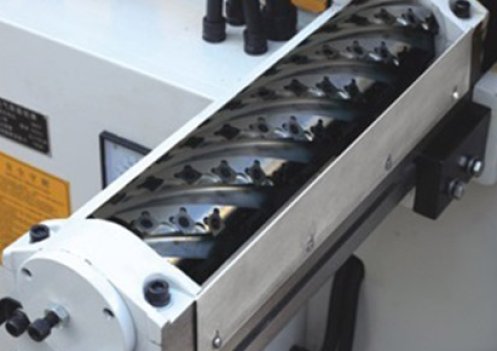

Pull the knife shaft quick change tool, cutting toll replacement correction is convenient, quick, security.

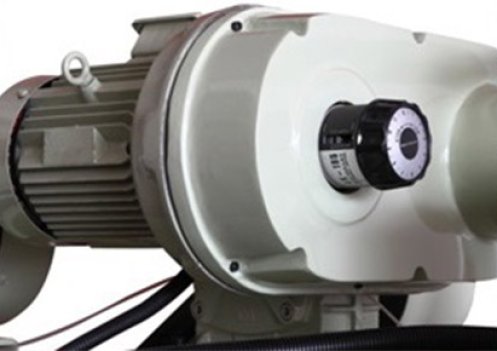

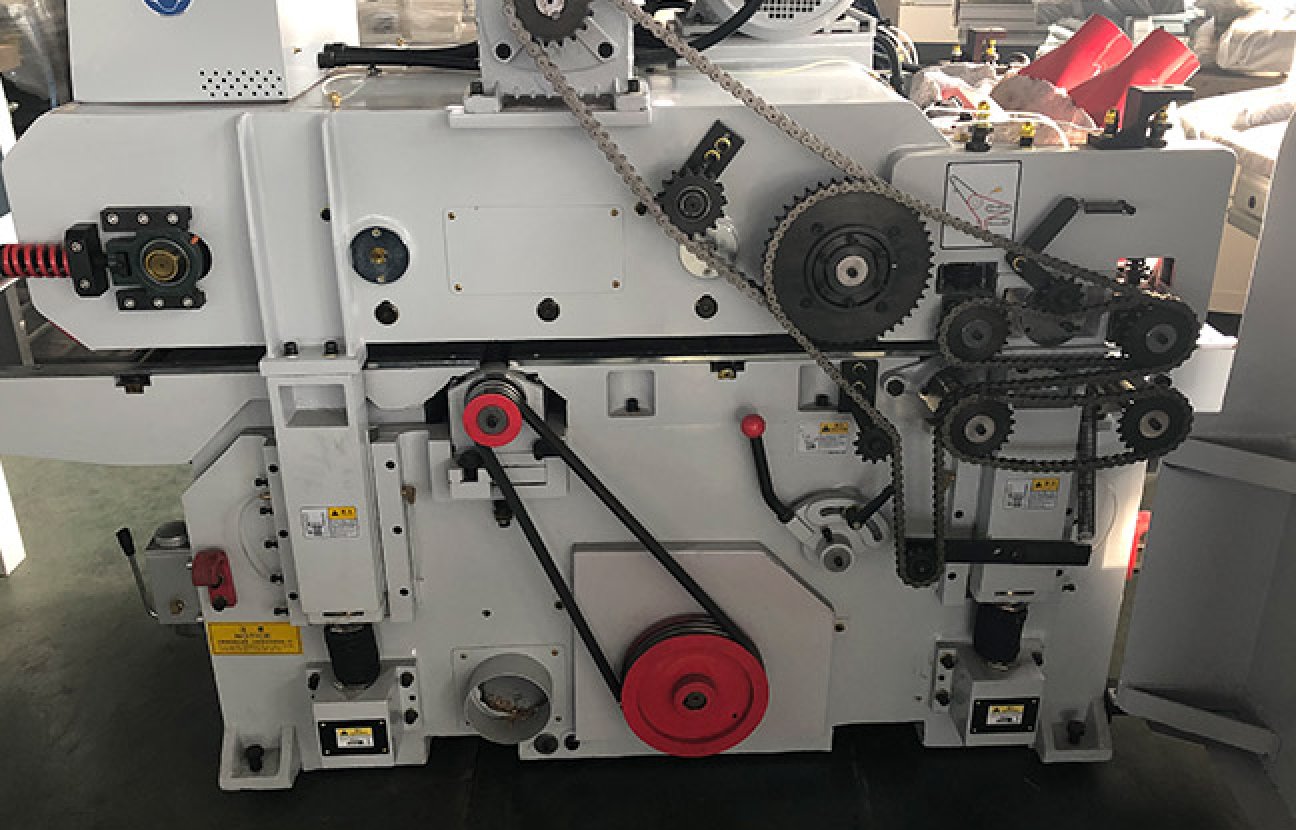

Special speed adjustment device combining with power torque worm reducer, enables to select a feed speed according to actual need.

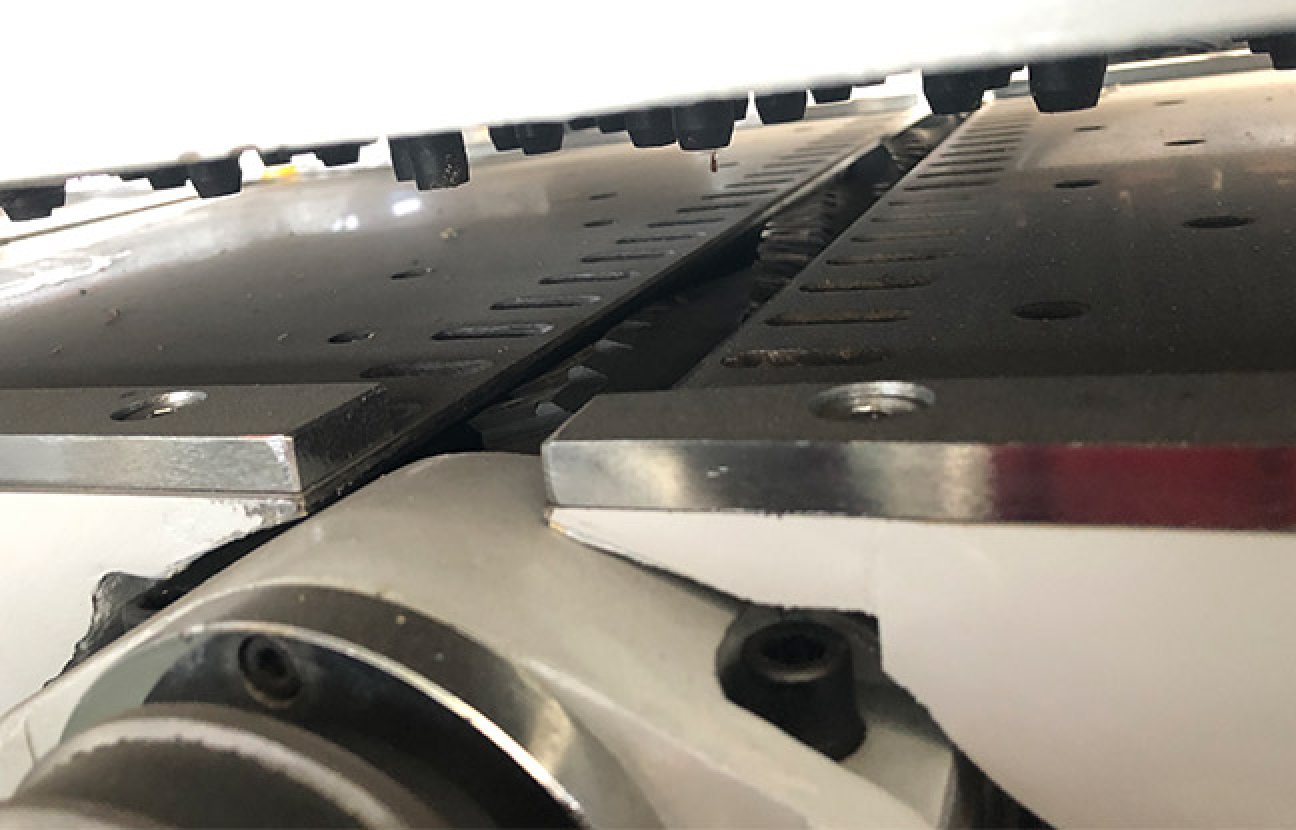

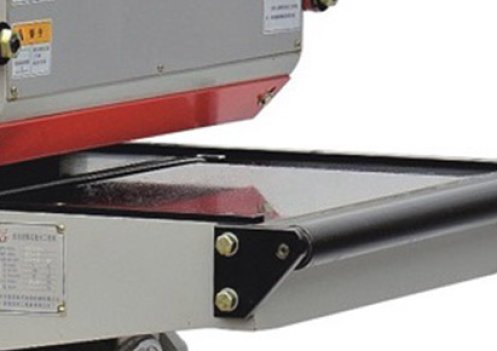

Processing mesa adopts high hardness chromium plating processing, surface smooth level off, forever. Wear-resisting, hooks on both ends can be articulated transmission platform.

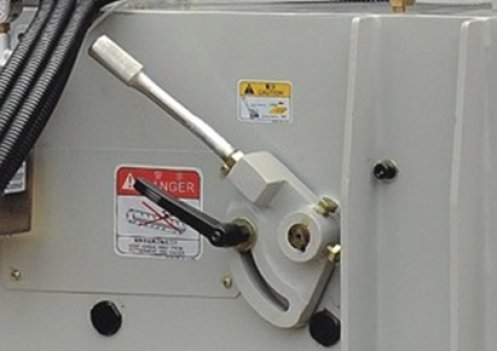

The feeding unit can be adjusted up-wards and downwards, the elevating range reaches 10mm, and thus the processing precision can be enhanced with powerful feeding.

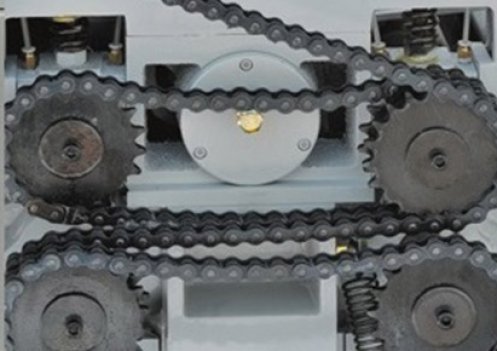

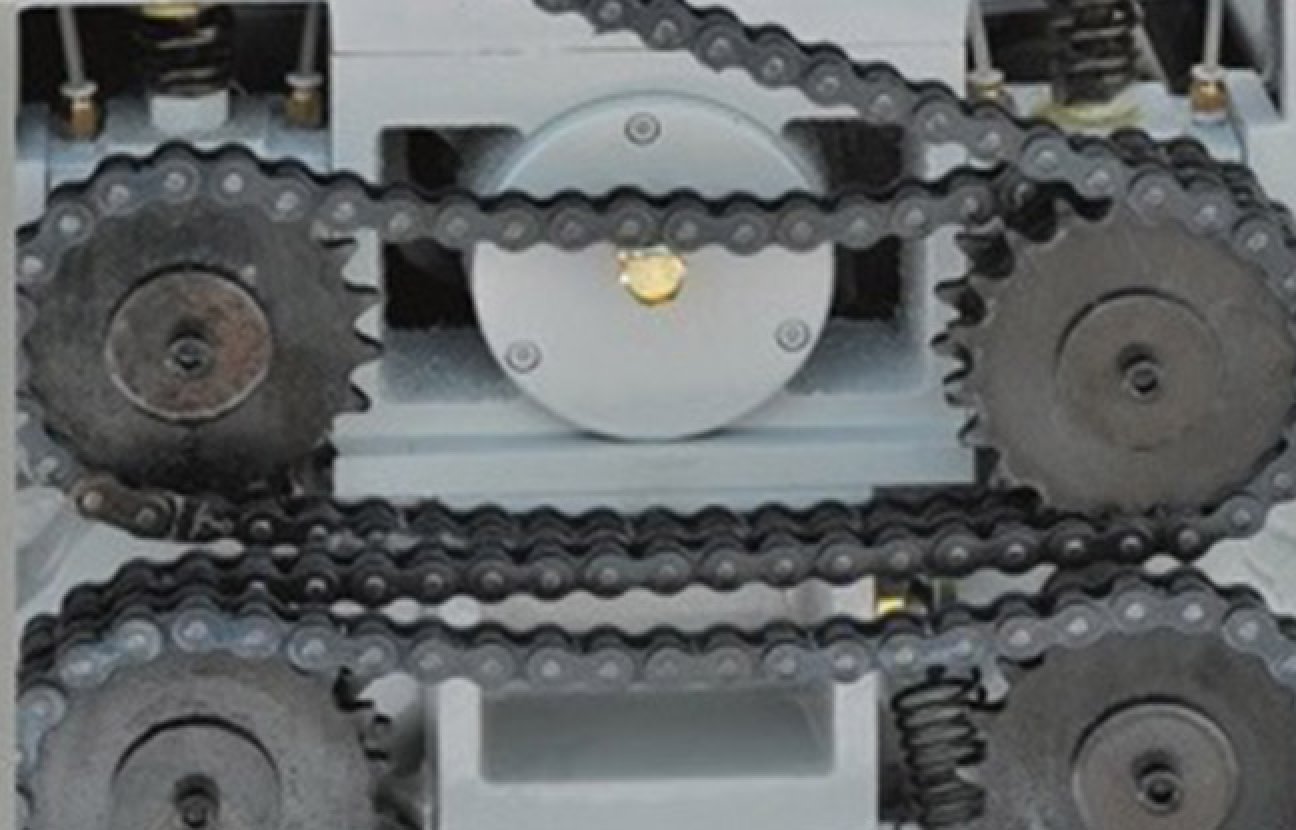

Provided with driven feed roller structure, ensuring a stronger and smoother feeding quipped with overloading protected mechanism.

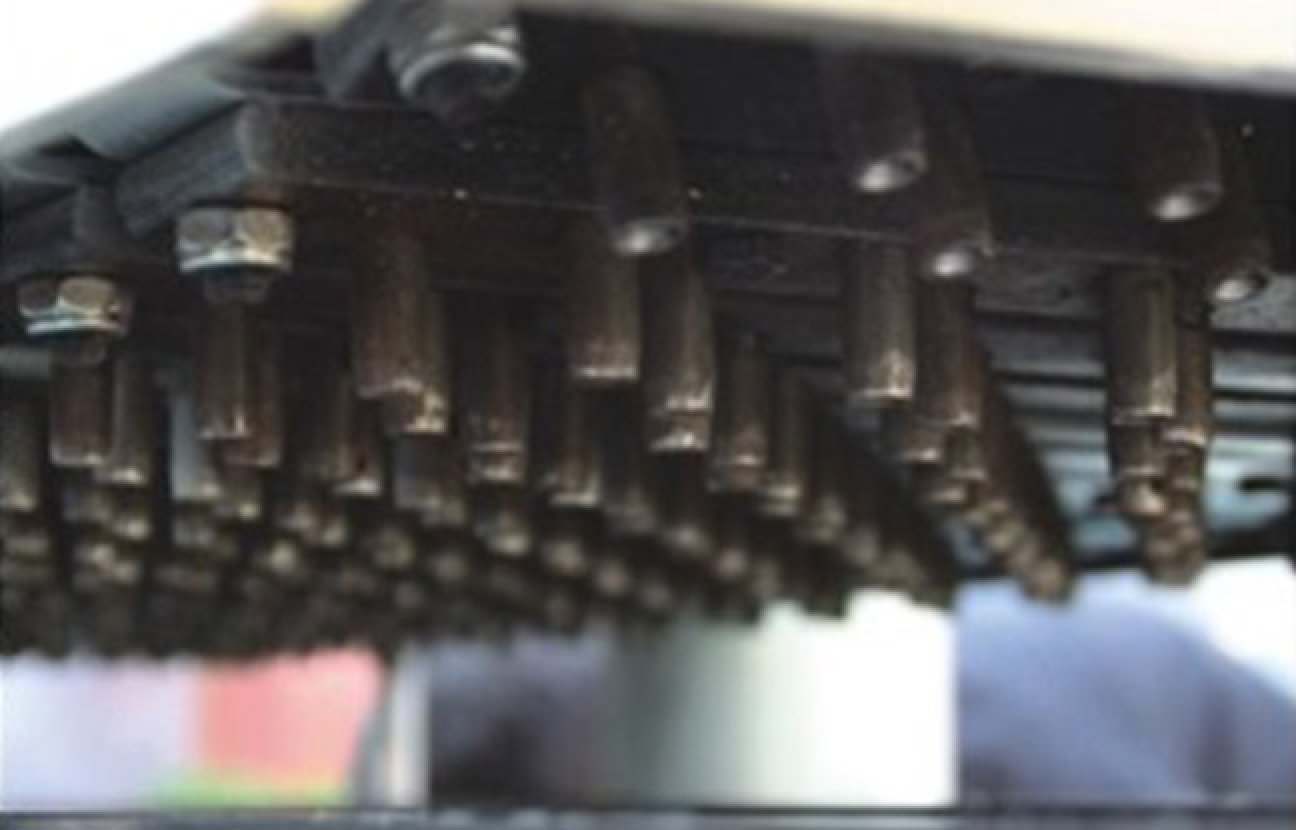

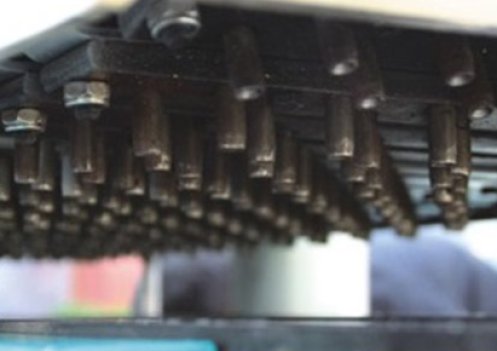

Equipped with pressure plate guarantees short workpiece smooth machining, increasing production output.
