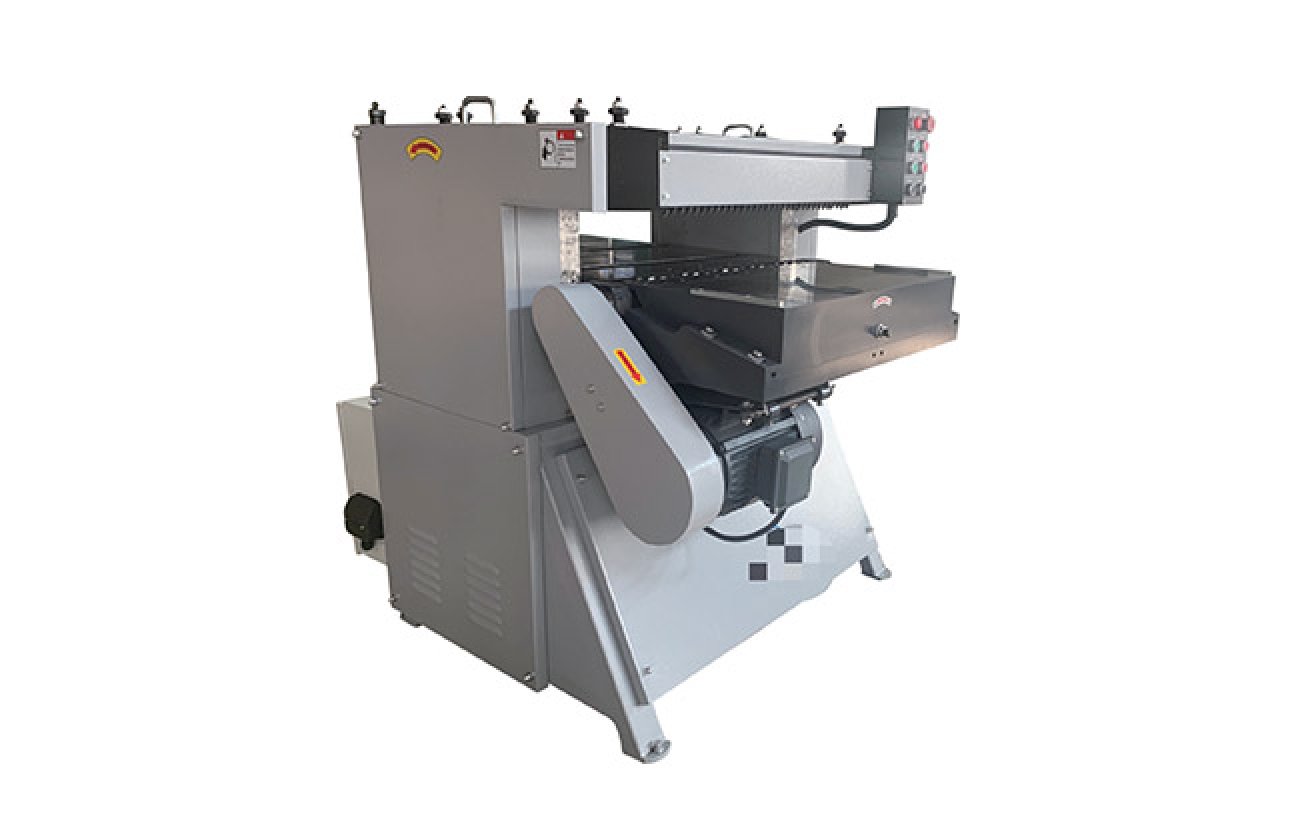

Wood Planer Thicknesser

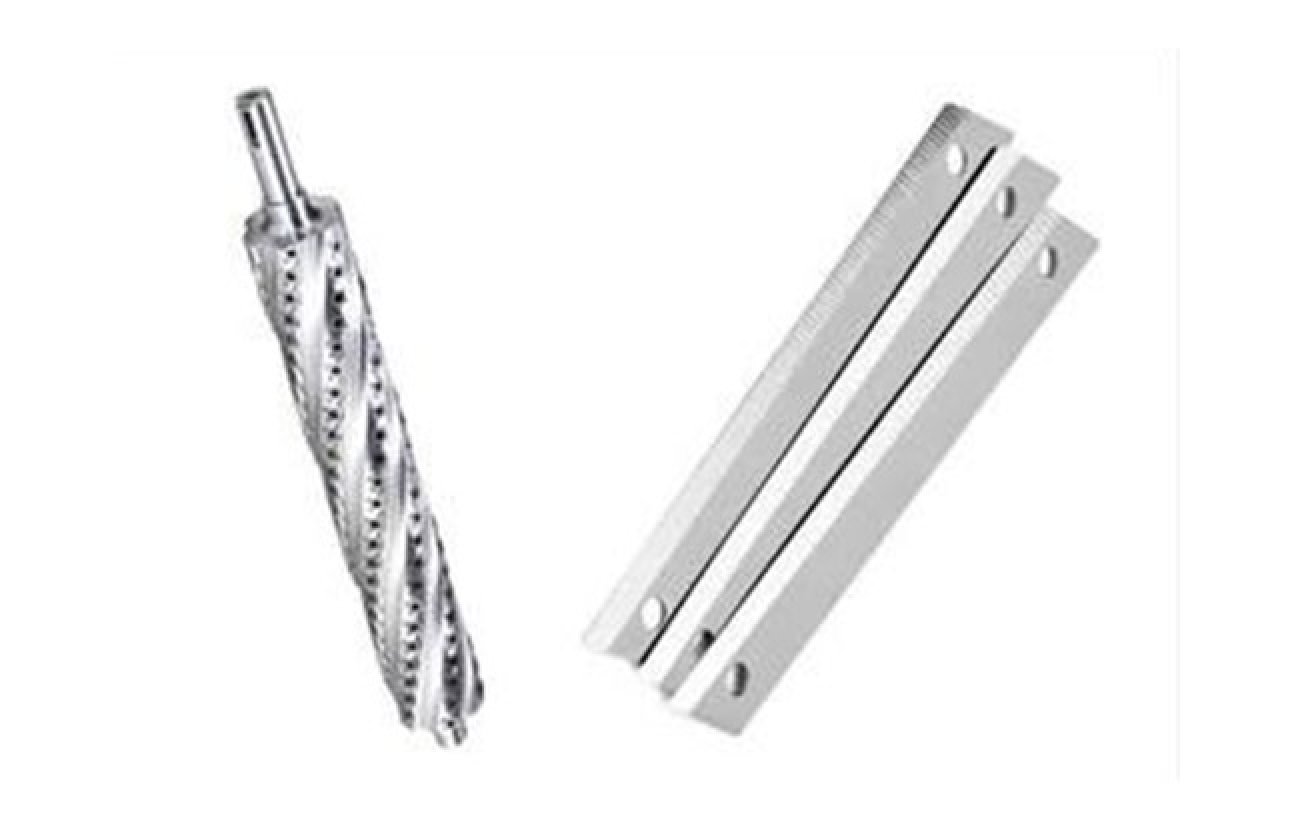

● Straight and spiral knives are optional

● High precision

● Higher working efficiency

● Heavy duty machine body, long life service

● Customizable and OEM & ODM

Inquire now

Add to cart

Product Details

Wood Planer Thicknesser Technical Data:

Model	MB204H	MB206H
Max processing width	430mm	630mm
Max. process thickness	120mm	200mm
Min. process length	200mm	220mm
Max planning depth (Top spindle)	4mm	5mm
Max planning depth (Bottom spindle)	3mm	3mm
Speed rotation rate	6800rpm	6800rpm
Feeding speed	6;10m/min	10;12;16m/min
Spindle Speed	5000r/min	5000r/min
Upper & Bottom Spindle power	7.5kw	7.5/4kwkw
Feeding motor power	0.55kw	0.55kw
Weight	680kg	1150kg
