Model | ZDR-RP630 | ZDR-RP1000 | ZDR-RP1300 |
Max working width | 630mm | 1000mm | 1300mm |
Material thickness | 2-120mm | 2.5-120mm(option 2.5-160mm) | 2-120mm(option 2.5-160mm) |
Min. Working length | 350mm | 350mm | 350mm |
Feeding speed | 6-30m/min | 6-30m/min | 6-30m/min |
1# sanding belt speed | 18m/min | 18m/min | 18m/min |
2# sanding belt speed | 14m/min | 12m/min | 12m/min |
Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
Main motor power | 11kw,7.5kw | 15kw,11kw | 37kw,22kw |
Total power | 20.74kw | 30kw | 56.74kw |
Working air pressure | 0.5mpa | 0.55mpa | 0.55mpa |
Volume of dust collecting | 5000m3/h | 5500m³/h | 5000m³/h |
Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
Overall dimension(L*W*H) | 1700*1100*2050mm | 1700*1400*2050mm | 2750*2200*2050mm |
Weight | 1300kg | 2000kg | 3200kg |

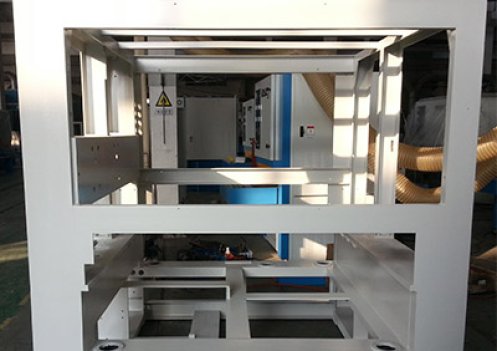

The machine adopts welded steel, after quenching, with good stability.

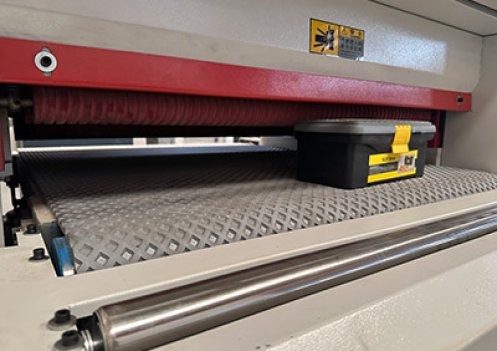

Imported conveyor belt, good reliability, durability.
The series uses the beam barrel and the beam seat structure, good stability, easy maintenance. Belt tension cylinder adopts cast iron processing, tensile strength is great, good stability. Conveyor belt adjusting cylinder adopts 63x20 cylinder, large power, and good stability. Active roll stigmas are bold, and after quenching, ensure the stability and durability of the driving roller.
