Saw blade lift | Electrical |
Saw blade angle tilting | Manual |
Saw blade readout | Digital readout |
Dimension of sliding table | 3200/3800x415/435 mm |
Gross cut capacity | 3200/3800 mm |
Width of cut between saw blade and rip fence | 1250 mm |
Tilting saw group | 0-45° |
Diameter of main saw blade | 400 mm |
Max cutting height 90°/ 45° | 120mm/80mm |
Speed of main saw spindle | 3000/4000/5000 r.p.m |
Main saw motor power | 5.5 kw |
Main spindle diameter | 30 mm |
Diameter of scoring saw blade | 120 mm |
Speed of scoring saw spindle | 8000 r.p.m |
Scoring saw motor power | 1.1 kw |
Scoring saw spindle diameter | 22 mm |
Gross weight | 1100 KGS |
Overall dimension | 3250x3150x900 mm |
Quick and secure pressing the wood board, 0° to 45° angle adjustable.

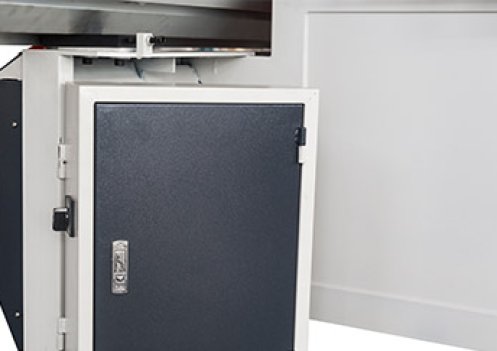

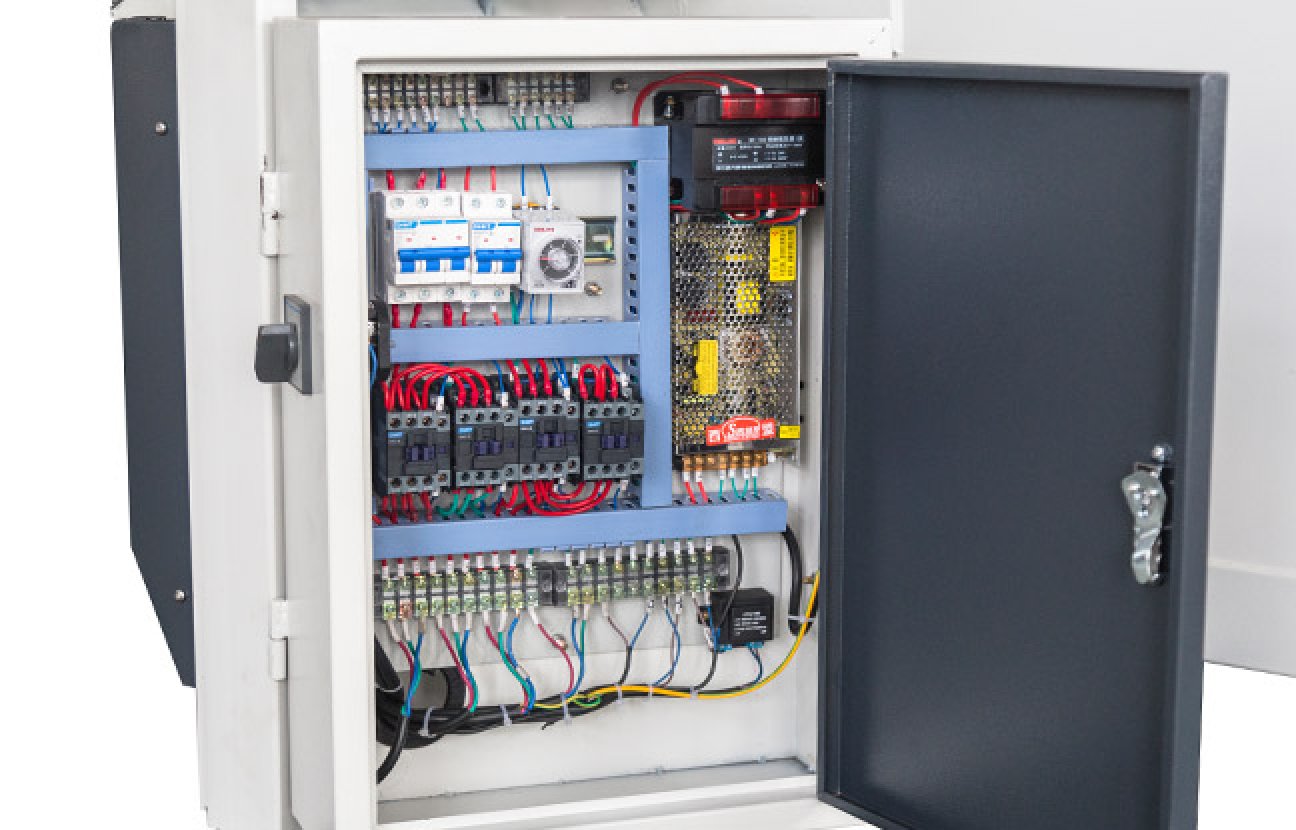

Independent electric box is dustproof, which can low rate of power failure. Top quality electric parts, more sensitive and longer lifetime.

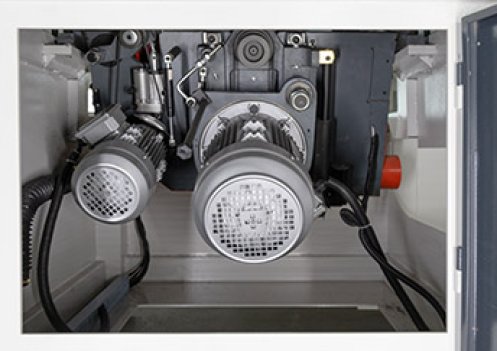

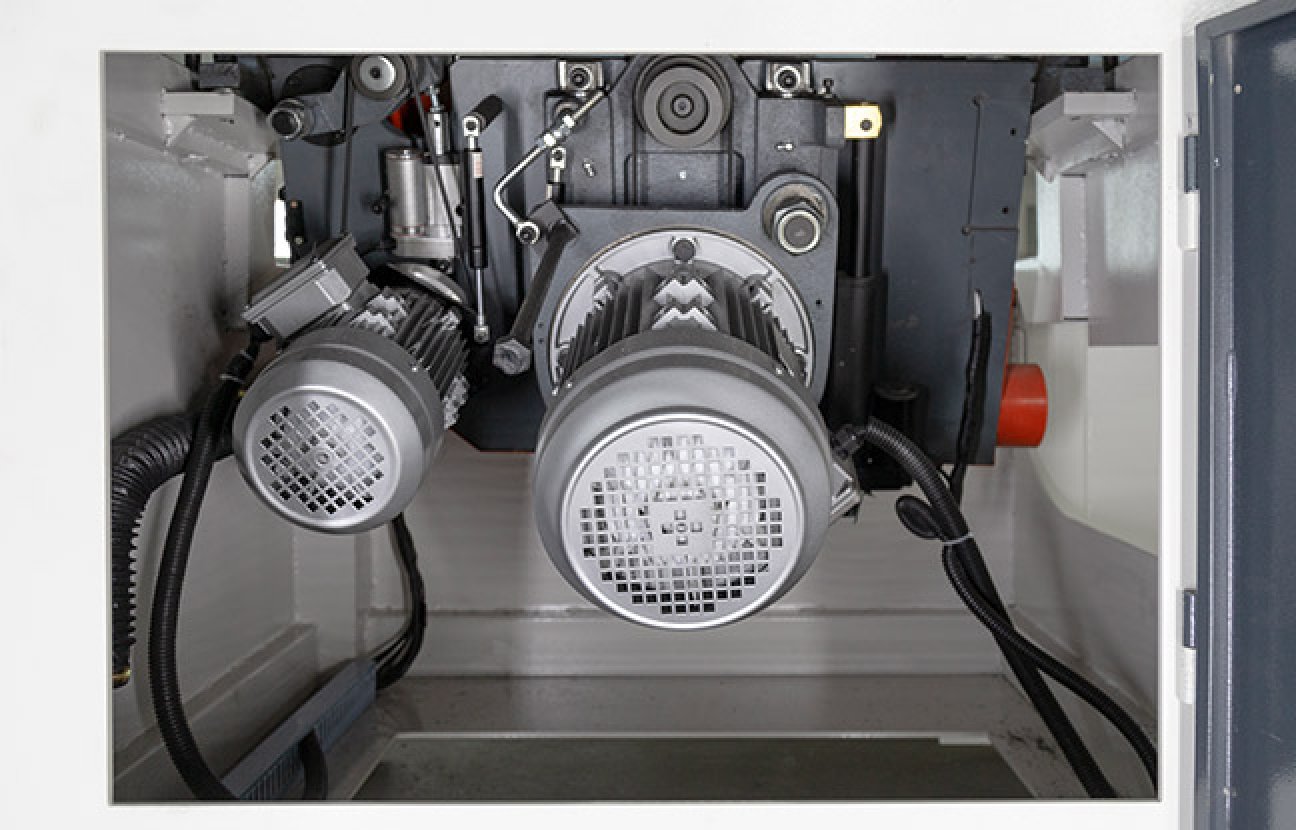

The cutting assembly of ZD400T was projected to assure a high quality and precise cut. With high quality 5.5kw main saw motor and 1.1kw scoring saw motor.

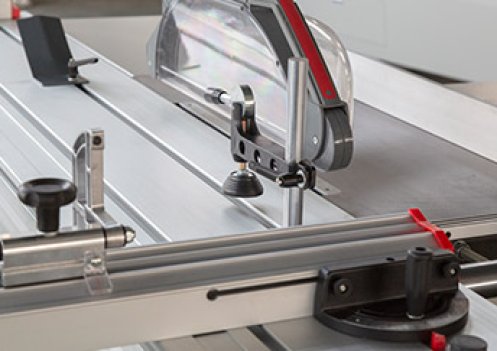

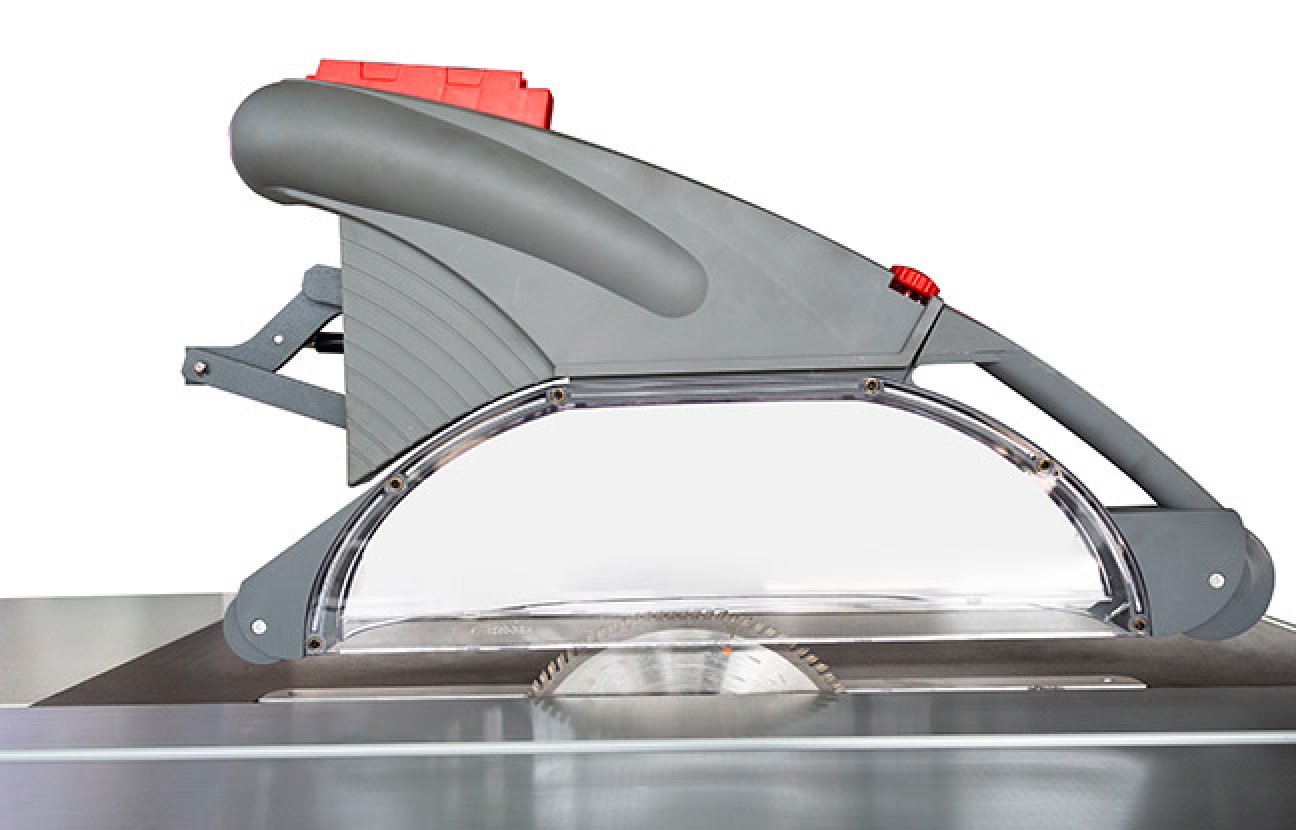

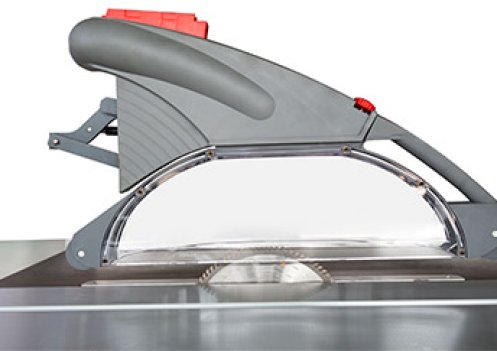

European style dust hood with control arm The saw blade protection allows the operator to visualize the panel while cutting and increases the dust extraction capacity.

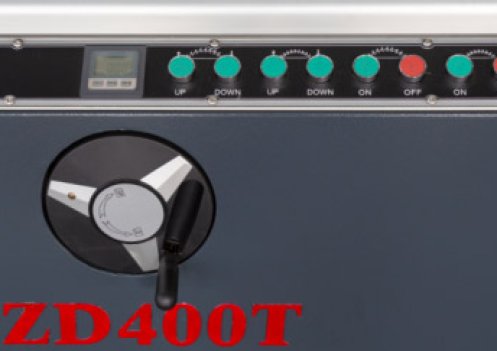

Control panel Humanized design and easy to operate control panel. Auto lifting of the main and scoring blades Digital indicator for angles.

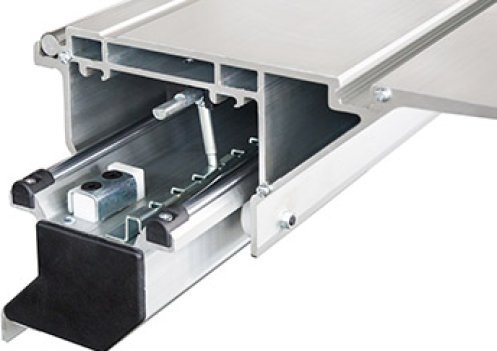

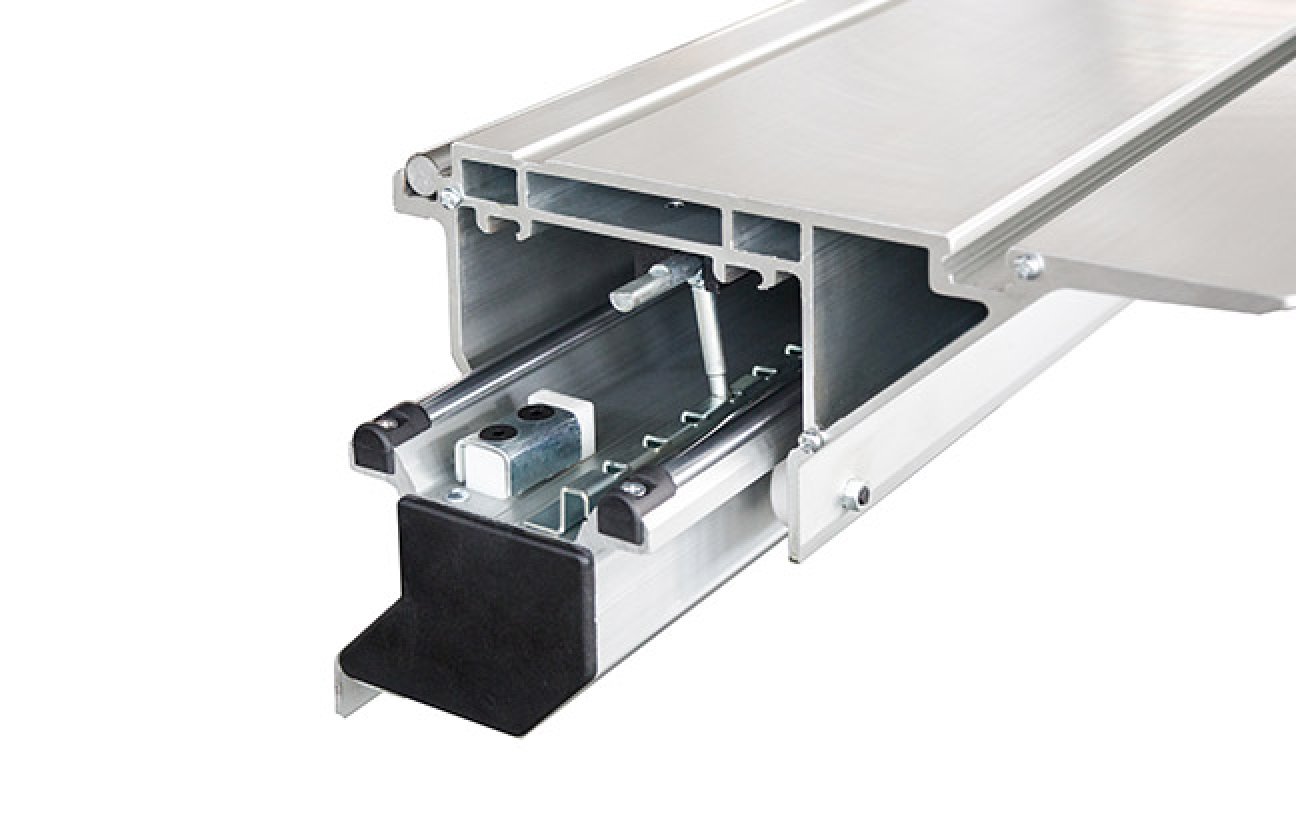

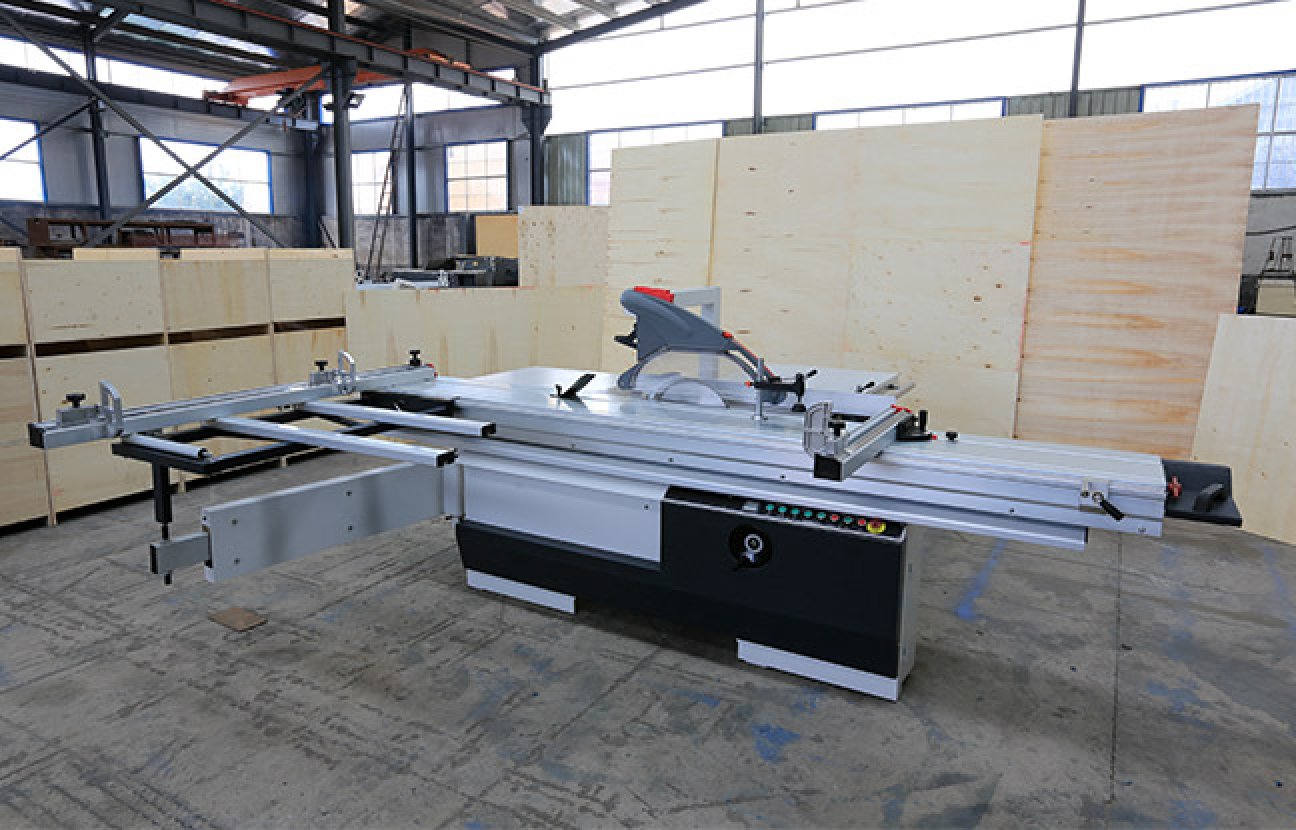

European style double layers high strength Aluminum profile sliding table can support the larger panels, with high precision.
